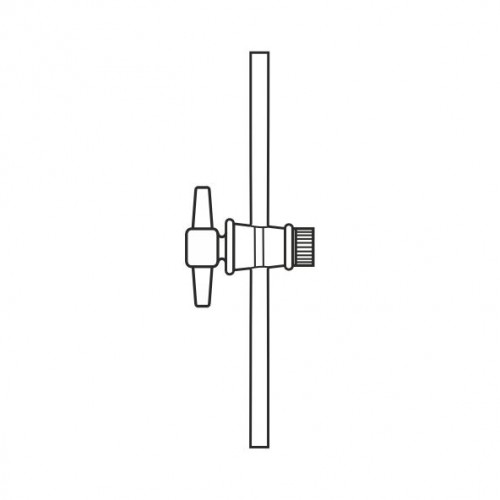

Single way stopcock, with PTFE plug
With PTFE plug for grease-free operation. The 3-part tap safety catch secures the tap plug in the tap sleeve. With screwthread retaining device. Glass articles for further processing.
- SKU: 21.102.XX
| Code | Product Variant Name | Package Contains | Price (w/o VAT) | Price (with VAT) | |
|---|---|---|---|---|---|
| 21.102.05.DURAN | Stopcock Ø (NS): 12,5, Bore Ø (mm): 2,0, Side tubes Ø (mm): 8, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.05.DURAN / CS | - | - | Request an offer |
| 21.102.09.DURAN | Stopcock Ø (NS): 12,5, Bore Ø (mm): 2,0, Side tubes Ø (mm): 8, Tube wall thickness (mm): CAPILAR I.D. Ø2.2, Packing unit (qty.): 10 | 21.102.09.DURAN / CS | - | - | Request an offer |
| 21.102.07.DURAN | Stopcock Ø (NS): 12,5, Bore Ø (mm): 2,5, Side tubes Ø (mm): 8, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.07.DURAN / CS | - | - | Request an offer |
| 21.102.07.TSKLO | Stopcock Ø (NS): 12,5, Bore Ø (mm): 2,5, Side tubes Ø (mm): 8, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.07.TSKLO / CS | - | - | Request an offer |
| 21.102.08.TSKLO | Stopcock Ø (NS): 14,5, Bore Ø (mm): 2,5, Side tubes Ø (mm): 9, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.08.TSKLO / CS | - | - | Request an offer |
| 21.102.11.TSKLO | Stopcock Ø (NS): 14,5, Bore Ø (mm): 4,0, Side tubes Ø (mm): 10, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.11.TSKLO / CS | - | - | Request an offer |
| 21.102.10.DURAN | Stopcock Ø (NS): 14,5, Bore Ø (mm): 2,5, Side tubes Ø (mm): 9, Tube wall thickness (mm): CAPILAR I.D. Ø2.7, Packing unit (qty.): 10 | 21.102.10.DURAN / CS | - | - | Request an offer |
| 21.102.08.DURAN | Stopcock Ø (NS): 14,5, Bore Ø (mm): 2,5, Side tubes Ø (mm): 9, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.08.DURAN / CS | - | - | Request an offer |
| 21.102.11.DURAN | Stopcock Ø (NS): 14,5, Bore Ø (mm): 4,0, Side tubes Ø (mm): 10, Tube wall thickness (mm): 1,5, Packing unit (qty.): 10 | 21.102.11.DURAN / CS | - | - | Request an offer |
| 21.102.13.TSKLO | Stopcock Ø (NS): 18,8, Bore Ø (mm): 6,0, Side tubes Ø (mm): 13, Tube wall thickness (mm): 1,5, Packing unit (qty.): 5 | 21.102.13.TSKLO / CS | - | - | Request an offer |
| 21.102.12.DURAN | Stopcock Ø (NS): 18,8, Bore Ø (mm): 4,0, Side tubes Ø (mm): 10, Tube wall thickness (mm): 1,5, Packing unit (qty.): 5 | 21.102.12.DURAN / CS | - | - | Request an offer |
| 21.102.12.TSKLO | Stopcock Ø (NS): 18,8, Bore Ø (mm): 4,0, Side tubes Ø (mm): 10, Tube wall thickness (mm): 1,5, Packing unit (qty.): 5 | 21.102.12.TSKLO / CS | - | - | Request an offer |
| 21.102.13.DURAN | Stopcock Ø (NS): 18,8, Bore Ø (mm): 6,0, Side tubes Ø (mm): 13, Tube wall thickness (mm): 1,5, Packing unit (qty.): 5 | 21.102.13.DURAN / CS | - | - | Request an offer |
| 21.102.14.DURAN | Stopcock Ø (NS): 21,5, Bore Ø (mm): 6,0, Side tubes Ø (mm): 13, Tube wall thickness (mm): 1,5, Packing unit (qty.): 1 | 21.102.14.DURAN / CS | - | - | Request an offer |
| 21.102.18.DURAN | Stopcock Ø (NS): 29,2, Bore Ø (mm): 10,0, Side tubes Ø (mm): 18, Tube wall thickness (mm): 2,5, Packing unit (qty.): 1 | 21.102.18.DURAN / CS | - | - | Request an offer |
| 21.102.16.DURAN | Stopcock Ø (NS): 24,0, Bore Ø (mm): 8,0, Side tubes Ø (mm): 15, Tube wall thickness (mm): 1,8, Packing unit (qty.): 1 | 21.102.16.DURAN / CS | - | - | Request an offer |
With PTFE plug for grease-free operation. The 3-part tap safety catch secures the tap plug in the tap sleeve. With screwthread retaining device. Glass articles for further processing.
